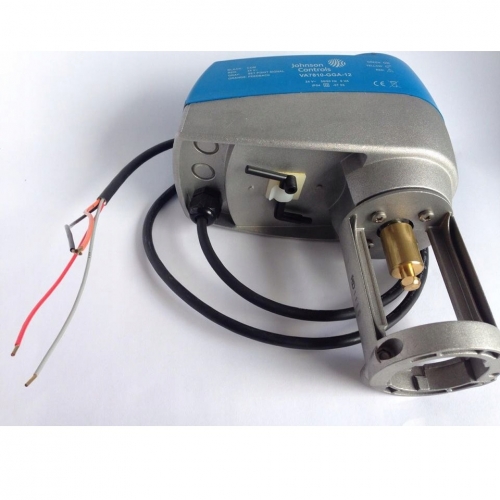

VA7810

Giá: Liên hệ

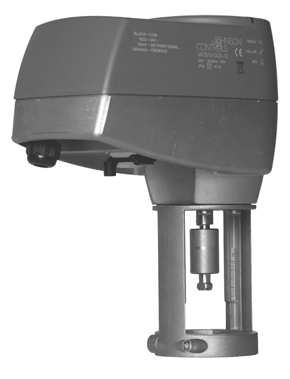

Floating and Proportional Control The VA7810 non spring return actuator with 1000 N thrust for valves in heating, ventilation and air conditioning applications is available for floating or proportional control. All models have manual override as standard and provide stroke capabilities of 7 mm to 25 mm. Proportional models are self-calibrating.

Hàng mới | Hàng hot | Lượt xem: 2331

Giới thiệu Chi tiết

Features

Proportional actuators are self calibrating
All models can also be used as floating and ON/OFF actuators
Force controlled motor shut-off
Manual override as standard
IP54 enclosure protection
Delivered with fitted 1.5 mm cable and wire terminals
Status LED
Models with opcional aux.switches or 2 k ohm feedback potentiometer
Control-signal faliure - stem to pre-determined position
Stroke position indicator

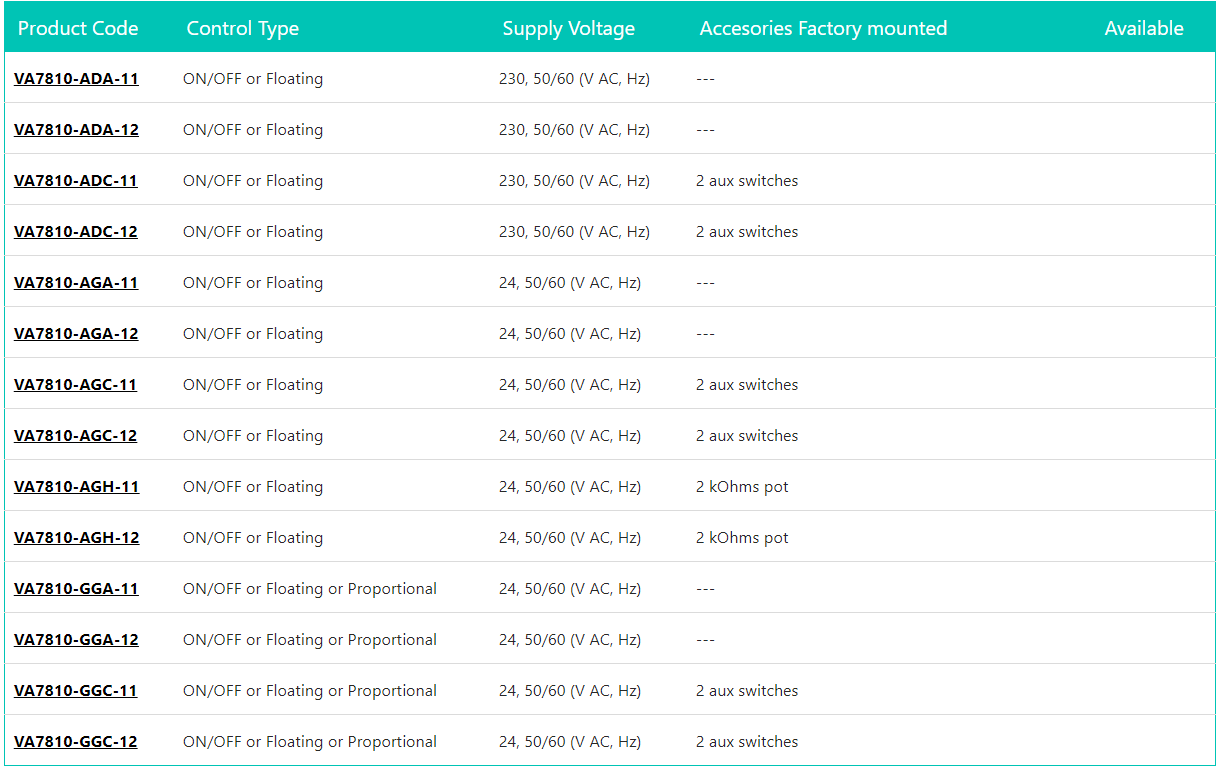

Product List

Chi tiết sản phẩm đang được cập nhật
