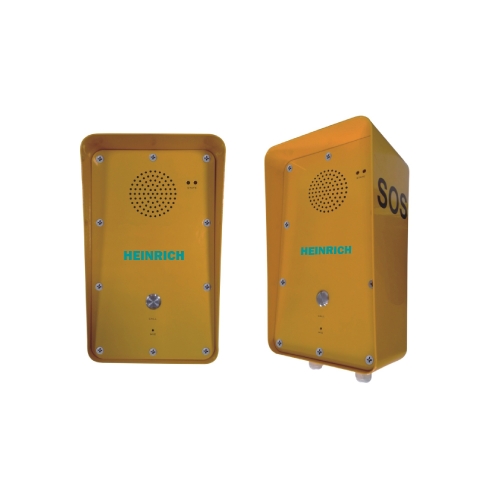

OIP1/Outdoor Indoor Panel

Features

* Two way communiation panel with one button press to talk to intercom station.

* Ideal coomunication for bank,prison,hospital,school,mining plant,transportation center,airport,metro or subway.

* Full IP/TCP network audio system which could be setup over non-dedicated network system.

* Embed PC technology,built-in DSP and high speed industrial chip to ensure start time less than 1 second.

* Ring call to intercom station and microphone and automatically transfer function when no answer or busy.

* Built-in 30W class D-amplifier to power 8 ohm speaker.

* Built-in high sensitive microphone for long distance voice pick up.

* Built-in a 3W full range monitor speaker for excellent voice restoration.

* Intercom station microphone and PC server center can broadcast music or voice message directly.

* Hand free communication system.

* One aux output for external power amplifier.

* One dry contact output to inter-work with third party system.

* One dry contact output to be controlled by third party system.

* Safe DC 11.5V-24.5V power amplifier.

* Minimum data delay and no echo noise.

* Full aluminum body for weatherproof IP55 level and explosive-proof design.

* Aluminum mounting box supplied with both surface mount and in wall mount design.

* Special anti-dismounting screw is supplied for fix up.

* Support WAN,LAN,span gateway and cross router.

Description

The OIP1 is a weatherproof & Explosive-proof two way communication intercom panel. It is used to have one button press communication with the network paging microphne PM8. It is very reliable industrial two way communication system for bank, prison,hospital,school,mining plant, transportation center, airport, metro or subway. In a real applications, there will be several neteworkpaaging microphone PM8 shall used as intercom station for reception desk, information desk, security offce,nurse room or logistic center. Each intercom ststion network paging microphone will be ID address distinguished by its own IP address, so one intercom ststion network paging microphone shall be responsible to answer and supervise servel IP intercome panel OIP1 Under emergency or information inquiry, the IP intercom panel can press button to call to its pre-designated intercom station microphone can answer or reject the call. if the pre-designated intercom station microphone is long time no answer or busy,the secondary intercom station microphone will be automatically transferred. every ring call is accompanied with warning chime tone and fashing indicator. while the intercom station microphone with could directly make announcement or sand pre-recorded messages to the IP intercom panel to warning the potential emergency which may be saw from CCTV system. The IP intercom panel is bulit-in a high sensitivity microphone and a 5W full range monitor speaker to ensure voice clearance and loudness. The IP intercom system is built-in dual CPU to ensure minimum sound delay. moreover, special circuit protection is adopted to avoide echo noise within this metal box. The IP intercom panel is built-in a decoder which is used to decode aux and control data into analogto internal amplifier and internal speaker. This IP intercom panel could be installed in anywhere of non-dedicated network system.so can help to save wiring cost. The IP intercom panel is also with a dry contact output to inter-work with third party low Voltage system like CCTV,door access system and home automation system. Status indicator will be light in different color for paging, intercom and voice alarm system. DC 12V to 24V safe power supplid system. The IP intercom Panel is designed of in-wall or wall mount design of outdoor applications.
